TDM Station

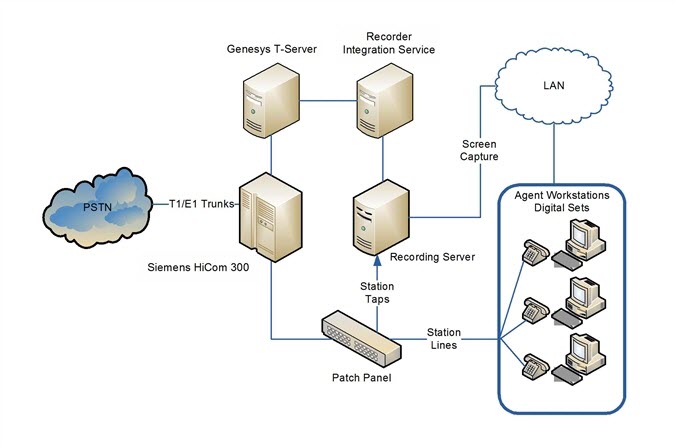

In TDM environments, station-side recording is initiated between the switch/ACD and a phone. This is done by tapping into the line that connects the switch to the telephone using a punch-down block. A cable is installed so that each extension connects directly to a port on the voice card. The following diagram illustrates a typical passive tap station-side configuration within a Call Center environment.
