TDM Trunk

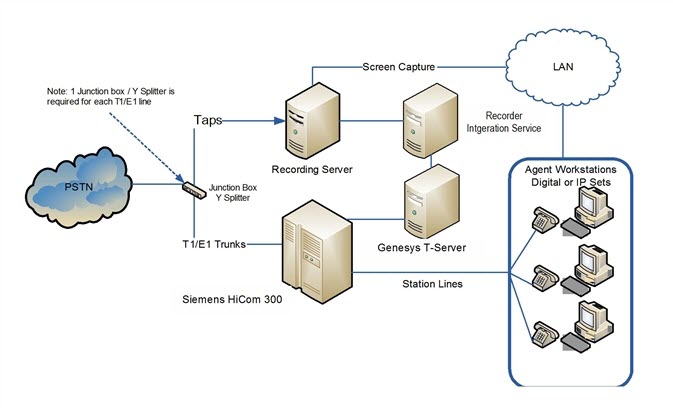

In TDM environments, trunk-side recording taps directly into a T1 or E1 line to record all incoming calls at the demarcation point before going to a switch. Passive tap trunk-side recording requires a physical connection directly between the demarcation point and the switch system. The following diagram illustrates a typical passive tap trunk-side configuration scenario within a Call Center environment.
