Update DP voice card channels

Update channels on the DP voice card to enable individual channels and modify associated recording settings. Channel IDs are created automatically.

The number of channels available depends on the selection of T1 or E1 in the card properties.

T1 has 23 Channels when configured as a PRI/ISDN and 24 channels when configured as Robbed Bit Signaling (RBS).
E1 has 30 channels for both ISDN and CAS.

Procedure

Click General Setup > Voice Cards and select a DP card.

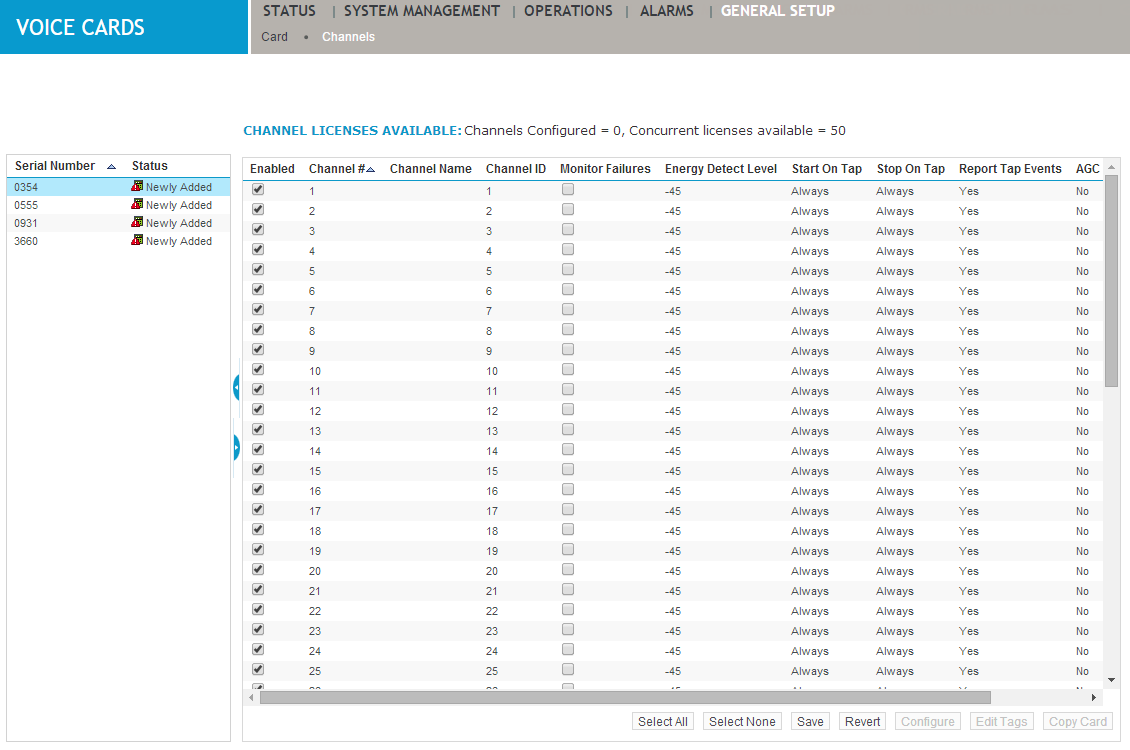

Click Channels.
Select a channel, and then click Configure.

To edit multiple channel names at one time, select the channels and click Edit Tags. See related topics (below) to learn about configuring channels.

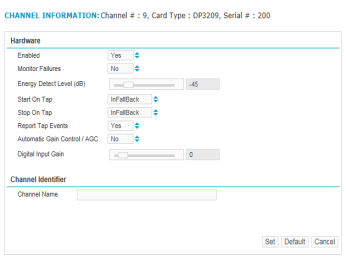

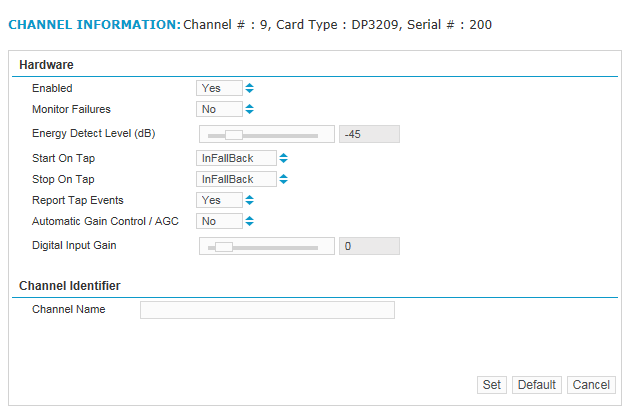

Complete the Hardware and Channel Identifier settings, as required. See related topics (below) to learn about channel properties.
Do one of the following:
- Click Set to complete your changes.
- Click Default to undo any changes and return to the default settings.
- Click Cancel to undo any changes and return to the last saved settings.
