Update PCM32 voice card channels

You can enable individual channels on the PCM32 voice card and modify the channel recording settings. Channel IDs are created automatically.

PCM32 cards can have a maximum of 32 channels (for the PCM3209 card) or 64 channels (for the PCM6409) card.

Procedure

Click General Setup > Voice Cards and select a PCM32 card.

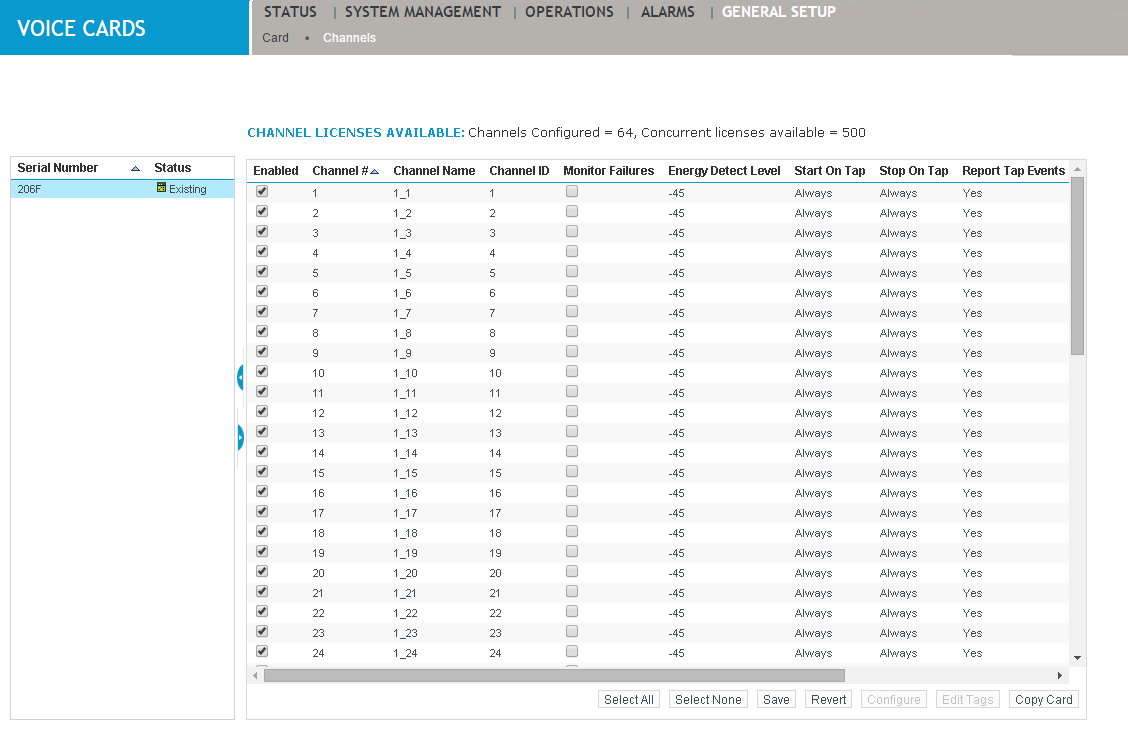

Click Channels.
Select a channel, and then click Configure.

To edit multiple channel names at one time, select the channels and click Edit Tags. See related topics (below) to learn about configuring channels.

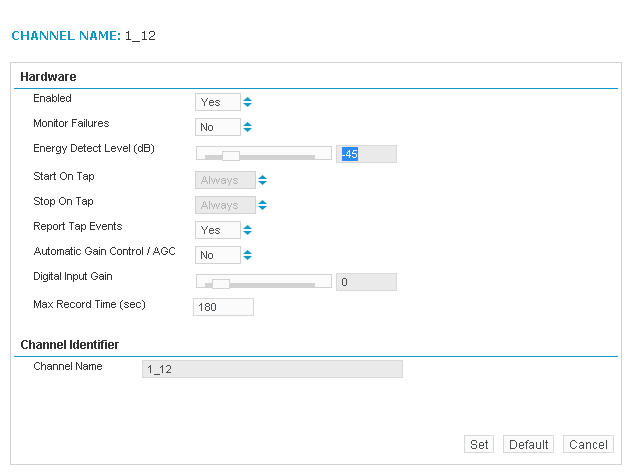

Complete the Hardware and Channel Identifier settings, as required. See related topics (below) to learn about channel properties.
Do one of the following:
- Click Set to complete your changes.
- Click Default to undo any changes and return to the default settings.
- Click Cancel to undo any changes and return to the last saved settings.
