Modify NGX voice card properties

NGX cards record digitally on the station-side (extension) of the switch, unlike T1/E1 cards, which record digitally on the trunk (switch) side.

Procedure

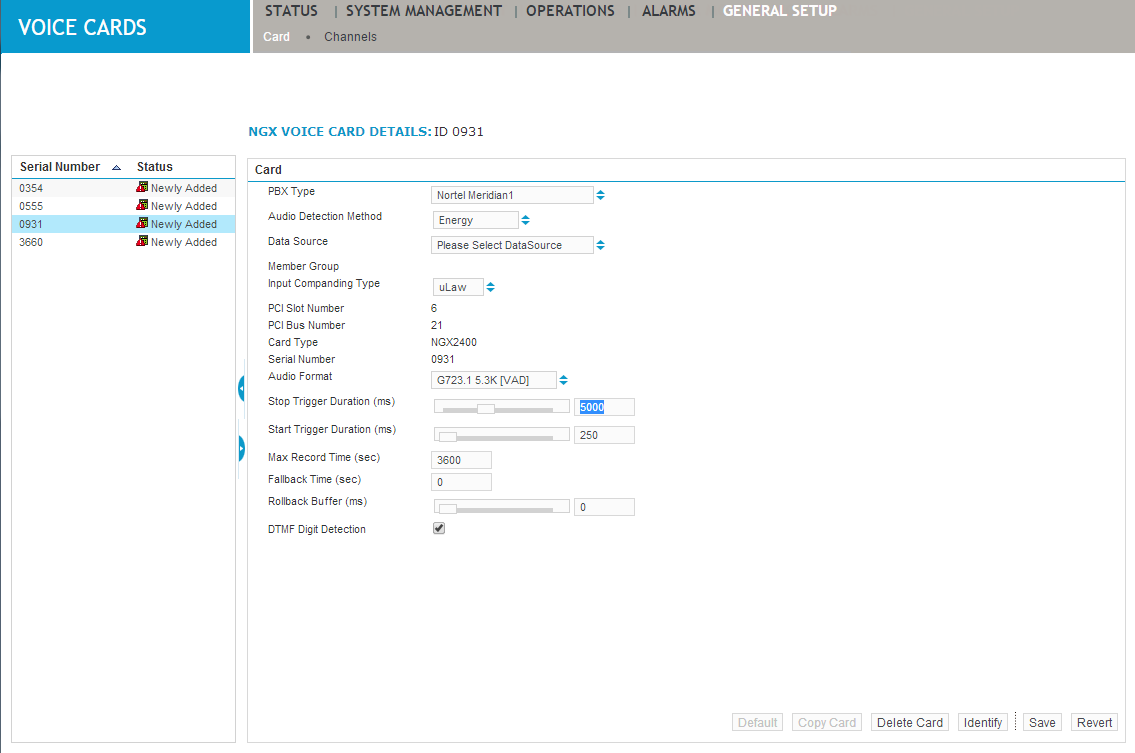

Click General Setup > Voice Cards > Card.
Select an NGX voice card status of Existing or Newly Added.
Edit the Card properties, as required. Note that some fields you cannot edit.
Click Channels to configure the channels associated with this card.
Do one of the following:
- Click Save to complete your changes.

  If prompted to restart the Recorder, click Operations > Start and Stop, then select Recorder and click Restart.
- Click Cancel to undo any changes and return to the last saved settings.
