Modify DT voice card properties

Most configuration changes occur dynamically without restarting the capture engine or rebooting the Recorder. However, framing, protocol, and line coding changes, require that you perform a restart.

Procedure

  1. Click General Setup > Voice Cards > Card.

  2. From the voice card list in the left pane, select a DT voice card status of Existing or Newly Added.

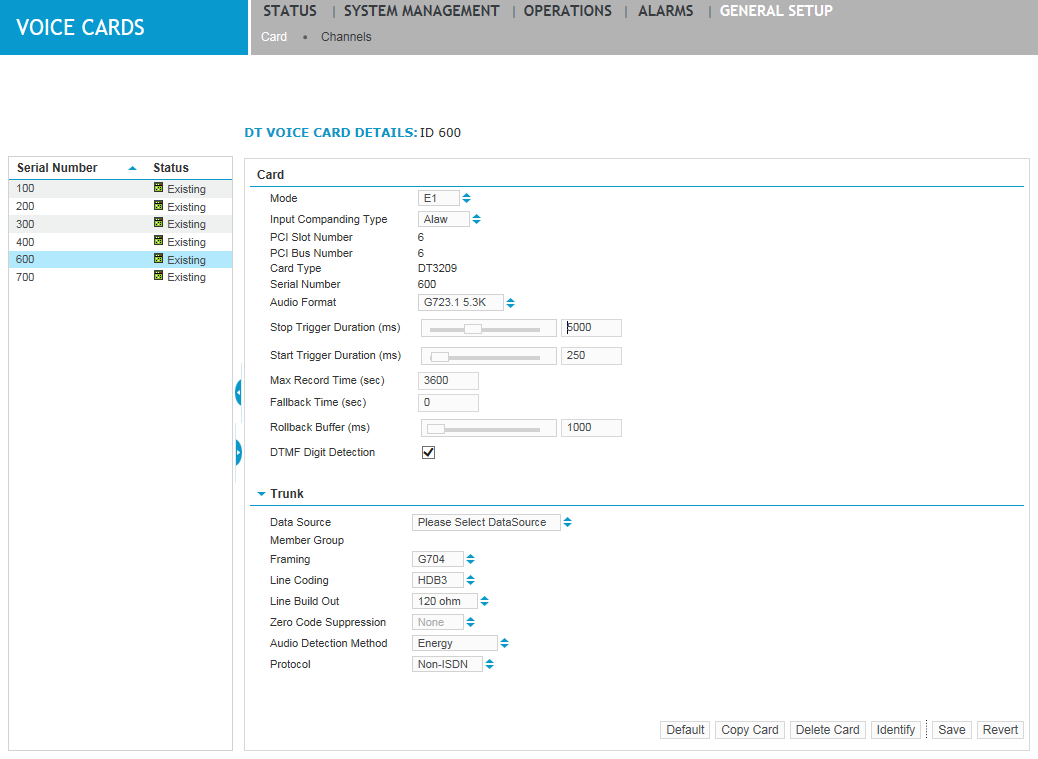

    Card screen under General Setup

  3. Edit the voice card properties, as required. Note that some fields you cannot edit.

  4. Edit the properties for each trunk.

  5. Click Channels to configure the channels associated with this card.

  6. Do one of the following:

    • Click Save to complete your changes.

      If prompted to restart the Recorder, go to Operations > Start and Stop > Reboot. Your changes take effect after the restart.

    • Click Revert to undo any changes and return to the original settings.
