Modify PCM32 voice card properties

Most configuration changes take effect dynamically without restarting the capture engine or rebooting the Recorder. Changes to the Input Companding Type require that you restart the system.

Procedure

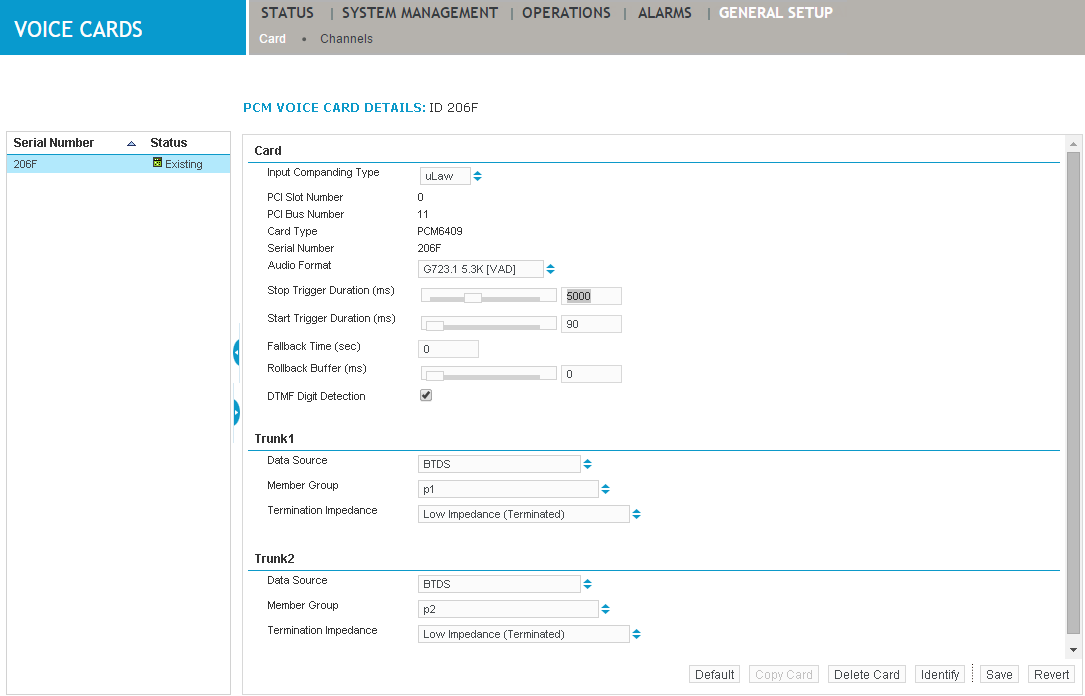

Click General Setup > Voice Cards > Card.

From the voice card list in the left pane, select a PCM32 voice card status of Existing or Newly Added.

Click Identify to illuminate a blinking light on the card for identification.
Edit the Card properties, as required. Note that some fields you cannot edit.
Edit the properties for each trunk.
Click Channels to configure the channels associated with this card.
Do one of the following:
- Click Save to complete your changes.

  If prompted to restart the Recorder, go to Operations > Start and Stop > Reboot. Your changes take effect after the restart.
- Click Revert to undo any changes and return to the original settings.
